Battery Energy Storage System
-

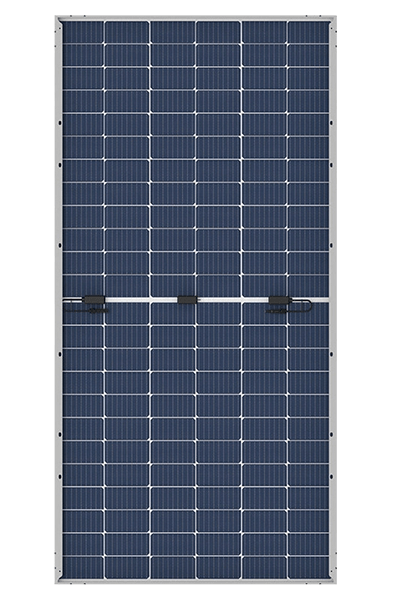

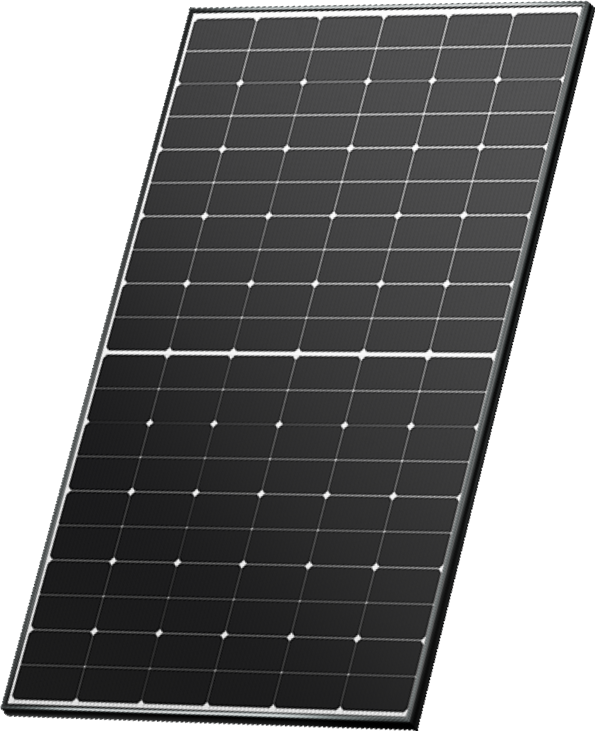

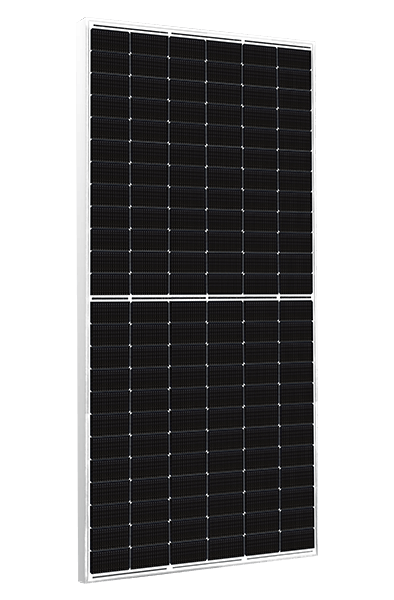

High-EfficiencyMono Solar PV Modules
-
Watt Range160wp - 200 wp
-
CustomisedNot Customised
-
Datasheet
KEY FEATURES
-
FrameHigh Tensile Anodised Aluminium (Silver)
-
Glass3.2mm Tempered Glass with Anti-Reflective (AR) Coating
-
CompatibilityWorks with 12V / 24V / 36V / 48V Systems
FEATURES & WARRANTY
The Universal Plus U-Series from KOSOL is a versatile range of solar PV modules designed for a wide spectrum of applications, including residential, commercial, industrial, agriculture, off-grid systems, and portable solar solutions.
BENEFITS
-
Weather ProtectionIP68 junction box safeguards against water and dust.
-
Low-Light PerformanceDelivers stable power even in cloudy or low-sunlight conditions.
| Power Tolerance | 0 to +3% |
| Voltage (Vmp) | Varies by model |
| Module Efficiency | Up to 17–19% |
| Wind Load | 2400 Pa |
| Connector | MC4 / Compatible |
| Glass | 3.2mm AR Coated Tempered Glass |
| Model | Dimensions (mm) |
|---|---|
| 40W | 455 × 635 × 30 |
| 50W | 525 × 635 × 30 |
| 100W | 825 × 665 × 30 |
| 200W | 1485 × 903 × 35 |
VEHICLE SOLAR ROOF SYSTEMS
- Integrated solar roofs for buses, trucks, vans, and transport fleets.
EMERGENCY BACKUP SYSTEMS
DRONE CHARGING STATIONS
